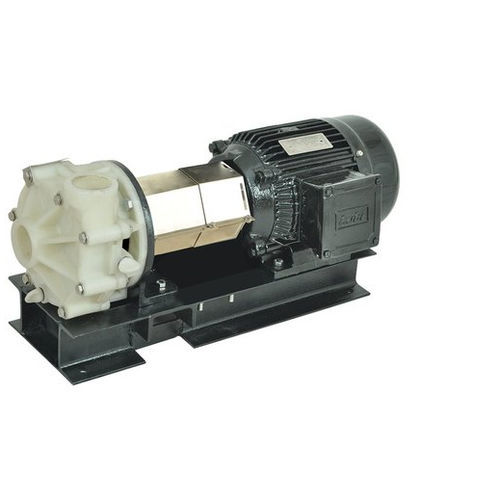

Centrifugal pump L serieswaterwith electric motorstationary
Add to favorites
Compare this product
Characteristics
- Technology
- centrifugal
- Fluid
- water
- Operation
- with electric motor
- Mobility
- stationary
- Domain
- industrial, chemical
- Material
- polypropylene, thermoplastic
- Protection level
- chemical-resistant, standard, IP55
- Other characteristics
- standard
- Flow
Max.: 22.5 m³/h
(794.58 ft³/h)Min.: 0 m³/h
(0 ft³/h)- Head
Max.: 22 m
(72'02" )Min.: 0 m
(0'00" )- Power
Max.: 2.2 kW
(2.99 hp)Min.: 0.37 kW
(0.5 hp)
Description
Corrosion Resistant Thermoplastic Pumps
These pumps shall be available in Noryl or Polypropylene material of construction and closed coupled with standard TEFC motor. They are also available as long-coupled with standard TEFC as well as Flame Proof motor.
The pumps shall be made of Noryl, which is non-metallic and chemical-resistant to most acids, alkalis, and inorganic solvents.
The pumps are made of non-metallic, glass-filled Polypropylene construction offering chemical resistance to most acids, alkalis, and inorganic solvents as does the Noryl series.
The pump shall be close coupled with a totally enclosed fan cooled type, 2900 rpm Induction motor with F class insulation, S1 duty and IP55 protection. 1 phase, 230 volts, 50 Hz (Standard Supply), 3 phase, 415 volts, 50 Hz
