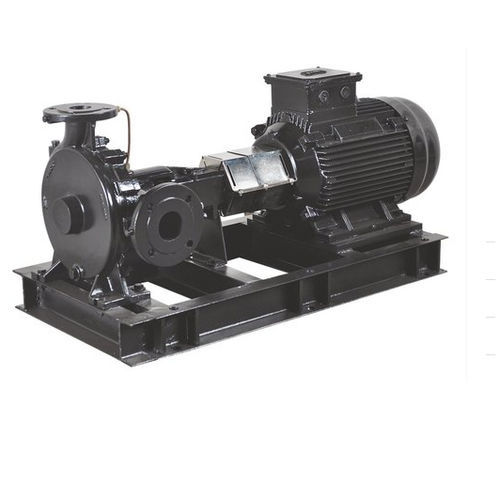

Impeller pump CI oilwith electric motorstationary
Add to favorites
Compare this product
Characteristics
- Technology
- impeller
- Fluid
- oil
- Operation
- with electric motor
- Mobility
- stationary
- Domain
- industrial
- Applications
- discharge
- Material
- stainless steel, cast iron, cast steel
- Other characteristics
- suction, lubricated, open, coated
- Flow
Min.: 0 m³/h
(0 ft³/h)Max.: 48 m³/h
(1,695.104 ft³/h)- Head
Min.: 0 m
(0'00" )Max.: 120 m
(393'08" )- Power
Min.: 11 kW
(14.96 hp)Max.: 18.5 kW
(25.15 hp)- Length
1,101 mm, 1,143 mm
(43 in, 45 in)- Width
474 mm
(18.66 in)- Height
552 mm
(21.73 in)- Weight
296 kg, 312 kg, 349 kg
(652.57 lb, 687.84 lb, 769.41 lb)
Description
Semi-open type impeller designed to handle slurries with solids.
Side & Gland Suction & Top Discharge connection.
Least Leakage due to gland portion on Suction side.
Shaft is protected from Sleeve which gives longer life of shaft.
Heavy duty oil lubricated bearing housing with two nos. of std. ball bearings.
Available in All Cast Iron, Cast Steel, Cast Iron with stainless steel Rotating Parts, All SS-304 & SS-316 MOC.
All cast iron parts shall be CED (cathode electrode deposition) coated for corrosion resistance with uniform coating and controlled deposition thickness of 20-30 microns.
Catalogs
LHL SERIES
4 Pages
