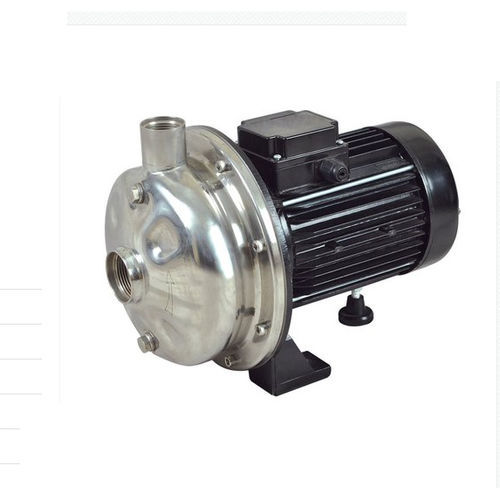

Impeller pump MXF serieswaterwith electric motorself-priming
Add to favorites
Compare this product
Characteristics
- Technology
- impeller
- Fluid
- water
- Operation
- with electric motor
- Priming
- self-priming
- Mobility
- stationary
- Domain
- industrial
- Applications
- discharge
- Material
- stainless steel, ceramic, metal
- Other characteristics
- suction, mechanical, standard, axial, radial, seal
- Flow
Min.: 0 m³/h
(0 ft³/h)Max.: 10.5 m³/h
(370.804 ft³/h)- Head
Min.: 0 m
(0'00" )Max.: 36 m
(118'01" )- Power
Min.: 0.37 kW
(0.5 hp)Max.: 1.5 kW
(2.04 hp)- Fluid temperature
Min.: 0 °C
(32 °F)Max.: 90 °C
(194 °F)- Length
335 mm, 365 mm
(13 in, 14 in)- Width
237 mm
(9.33 in)- Height
239 mm, 268 mm
(9.41 in, 10.55 in)- Weight
10.5 kg, 12 kg, 21 kg, 21.5 kg
(23.15 lb, 26.46 lb, 46.3 lb, 47.4 lb)
Description
The pump casing shall be fabricated from AISI 304 stainless steel sheet metal and shall have axial suction and radial discharge port.
The pumps shall have closed type impeller with material of construction of AISI 304 stainless steel sheet metal.
The Pump shaft sealing will be by mechanical shaft seal of Carbon/Ceramic/NBR/AISI 304 construction suitable for 10 bar pressure rating and water temperature from 0 to +90 deg. C.
The Motor will be suitable for 1 phase, 230volts, 50 Hz (Standard Supply), 3 phase, 415volts, 50 Hz.
All Fabricated stainless steel pump components shall be manufactured in house by the manufacturing company.
