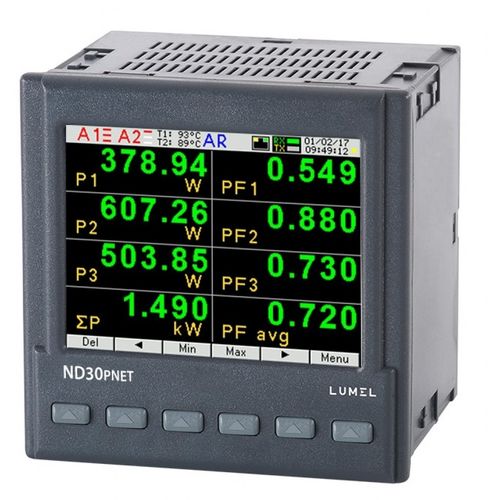

Panel-mount power meter ND30PNET

single-phasethree-phase

Measurement of 54 parameters, harmonics up to 51st, graphical screen-fully configurable by a user and Profinet interface - these are just some advantages of our new power network meter ND30PNET type. -Measurement and recording of 54 power network parameters, including current and voltage harmonics up to 51st, in 1-phase 2-wire or 3-phase 3 or 4-wire balanced and unbalanced systems. -Color graphical display: LCD TFT 3,5’’, 320 x 240 pixels, fully configurable by user (10 pages, 8 parameters in each) -Indications include the values of programmed ratios. -2 configurable alarm outputs. -Optional: analog output 0/4...20 mA and 2 x Pt100 inputs (e.g for measurement of transformer temperature). -Digital output RS-485 - MODBUS protocol. -Modern and user-friendly Ethernet / interface Profinet 2.2 : -Wide range of voltage supply -85..253 V a.c. or 90..300 V d.c. -20..40 V a.c or 20..60 V d.c. -Programming of parameters using free eCon software. -Battery backup RTC. -Overall dimensions: 96 x 96 x 77 mm.
