Current transformer LEvoltagesecondary
Add to favorites
Compare this product
Characteristics
- Type
- current
- Electrical characteristics
- voltage
- Other characteristics
- secondary
- Primary voltage
0.7 kV
- Primary current
Max.: 5,000 A
Min.: 50 A
- Secondary current
1 A, 5 A
Description

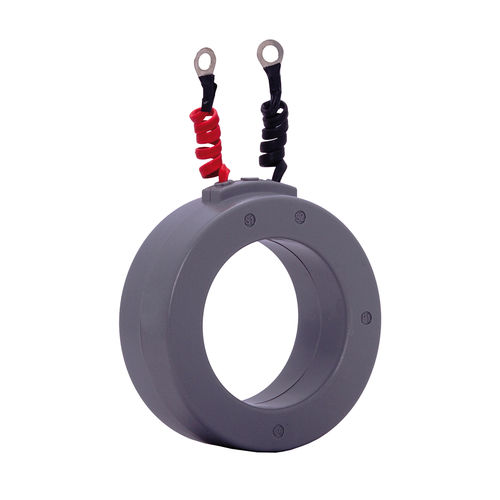

LW and LE series of current transformers with a round hole for a cable.
-Round shape of the housing
-Wide current range from 50A up to 5000A (LW series up to 3200A)
-Maximum operating voltage 0,72kV
-Secondary currents 1A or 5A
-Terminals of the secondary circuit are protected by a transparent cover that protects them against accidental contact
-Wires with lugs for secondary connections (LE series only)
-A complete set of accessories in a standard enabling wall mounting of the transformer
External dimension: depends on version
We offer calibration certificates at the customer's request.
