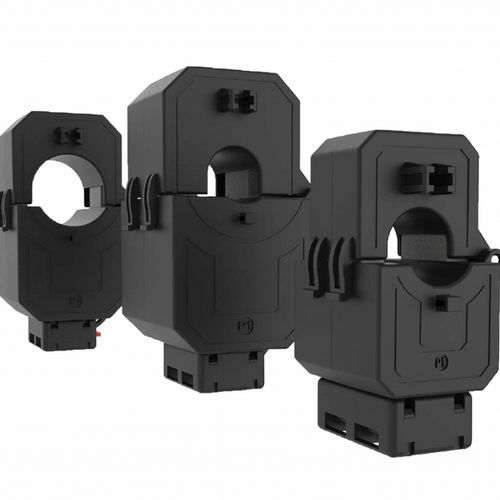

Current transformer LCTSsplit-coresingle-phasecompact
Add to favorites
Compare this product
Characteristics
- Type
- current
- Configuration
- split-core
- Electrical characteristics
- single-phase
- Other characteristics
- compact
- Primary voltage
0.7 kV
- Primary current
Max.: 500 A
Min.: 150 A
- Secondary current
1 A, 5 A
- Frequency
50 Hz, 60 Hz
Description
Quickly fixing current transformers LCTS series with split core are adapted to easy assembly on the mounting rail without the necessity of disconnecting the current circuit.
Owing to split core, the transformers could be used on the already installed current rails without the necessity of their disassembly and cutting.
The transformers assembly on the rails with the various sections is possible by 4 window dimensions:
-18,5 mm (compact version)
-32,5 mm (compact version)
-23 x 33 mm
-82 x 52 mm
-82 x 122 mm
-82 x 162 mm
Measuring ranges: 100...5000 A
Measuring ranges: 150...500 A (compact version)
External dimensions: depend on version
