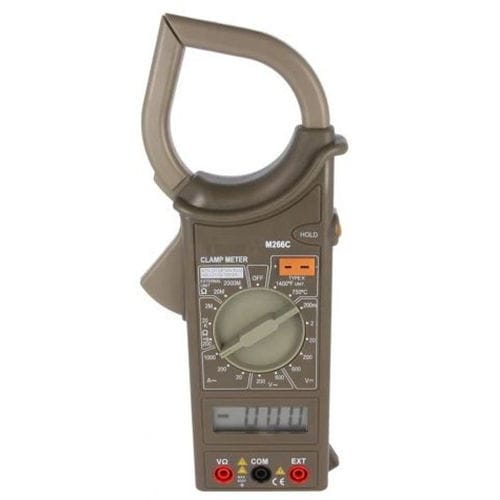

Digital clamp meter M266Cportablecat IIfrequency
Add to favorites
Compare this product
Characteristics
- Display
- digital
- Form
- portable
- Safety rating
- cat II
- Additional features
- frequency
- Other characteristics
- AC/DC
- Max DC voltage
0.2 V, 2 V, 20 V, 200 V, 600 V
- Max AC voltage
200 V, 600 V
- Max DC current
20 A, 200 A, 600 A, 1,000 A
- Max AC current
20 A, 200 A, 600 A, 1,000 A
- Max resistance measure
2 kOhm, 20 kOhm, 200 kOhm
- Max frequency measure
2 kHz
- Max DC voltage resolution
0.1 mV, 1 mV, 10 mV, 100 mV, 1,000 mV
- Max AC voltage resolution
0.1 V, 1 V
- Max AC current resolution
10 mA, 100 mA, 1,000 mA
- Max resistance resolution
1 Ohm, 10 Ohm, 100 Ohm
- DC voltage precision
0.5 %, 0.8 %
- AC voltage precision
1 %
- AC current precision
2.5 %, 3 %, 5 %
- Resistance precision
1 %
- Process temperature
Max.: 750 °C
(1,382 °F)Min.: 0 °C
(32 °F)
Description
This meter is one of a series handheld 3½ digital clamp meter for measuring DC and AC Voltage, AC current, resistance, continuity test and temperature test.
Thanks to the wide opening of the jaws, the current measurement is convenient and fast . The meter provides full overload protection, low battery indication and over range indication.
-3½ digit LCD, with automatic polarity indication
-dual-slope integration A-D converter system.
-CAT II 600V installation category
-jaw opening 50mm
-AC 20/200/600 / 1000A current measurement
-AC 200 / 600V voltage measurement
-DC voltage measurement 0.2 / 2/20/200 / 600V
-resistance measurement
-temperature measurement max. 750 * C
