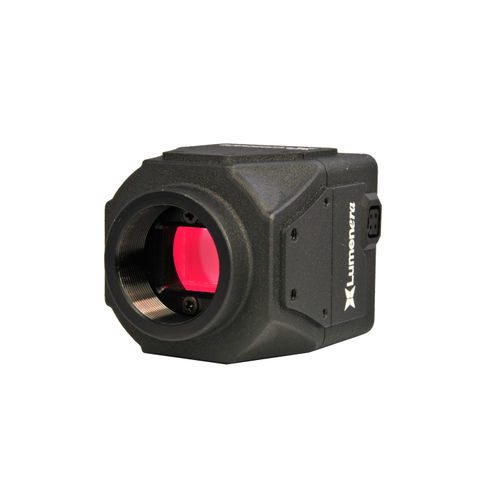

Industrial camera Lt-C/M4060

machine visiondigitalmeasuring

High Resolution – High Performance: The Lt-C/M4060 camera combines advanced Teledyne Lumenera technology with the Sony Pregius® IMX255 CMOS global shutter sensor. Its small form factor and lightweight design means the Lt-C/M4060 is ideally suited to applications in machine vision, life science, and UAVs. With FPGA power and integrated frame buffering, the Lt-C/M4060 provides fast, dependable image delivery. LT-C/M4060 CAMERA PRODUCT HIGHLIGHTS •Color or monochrome Sony IMX255 electronic global shutter CMOS sensor with 1” optical format •42 fps at full resolution (4112 x 2176) •8.9 megapixel color and mono solutions •High-Speed USB 3.1 Gen 1 interface for fast image delivery and simplified connectivity •P-Iris connector for support of precise iris lens control •Compact, robust form factor measuring 44 x 44 x 61 mm •Locking industrial micro USB and Hirose GPI/O connector for power and control of •peripherals and synchronization of lighting •Region of Interest (ROI) option to provide higher frame rates •Selectable 8 or 12-bit pixel data •Multiple data rates supported, each optimized for lowest noise performance
