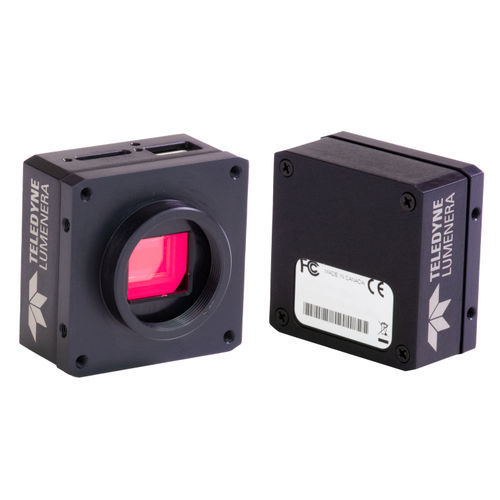

Industrial camera Lt-C/M1610

for scientific applicationsagriculturefor traffic monitoring

Using a high frame rate camera with advanced imaging technology is a must for imaging applications like Intelligent Traffic Systems (ITS). The 96 fps frame rate of the Lt-C/M1610 allows high-speed traffic to be imaged in a variety of lighting environments. With a dynamic range of 73 dB and a full well capacity up to 100Ke-, the camera’s 9 µm pixel size is able to capture an impressive amount of detail in low light environments. This means as the sun sets, the Lt-C/M1610 will be able to accurately capture crucial information such as license plate characters. TELEDYNE LUMENERA LT-C/M1610 CAMERA PRODUCT HIGHLIGHTS •Color or monochrome Sony Pregius IMX432 global shutter CMOS sensor with 1.1” optical format •1.7 megapixel camera with fast frame rates of 96 fps at full resolution (1608 x 1104) •High-Speed USB 3.1 Gen 1 interface for fast image delivery and simplified connectivity •Compact form factor measuring 45 mm x 45 mm x 36.1 mm •Locking industrial micro USB on the side for power and control •High Conversion Gain (HCG) allows camera to capture clearer images in low-light •environments with reduced read-noise •Region of Interest (ROI) option to provide higher frame rates •Selectable 8 or 12-bit pixel data •Multiple data rates supported, each optimized for lowest noise performance KEY APPLICATIONS •Aerial imaging •Precision agriculture •Portable / OEM Devices •Outdoor imaging •Intelligent Traffic Systems (ITS) •Life sciences •Industrial inspection solutions
