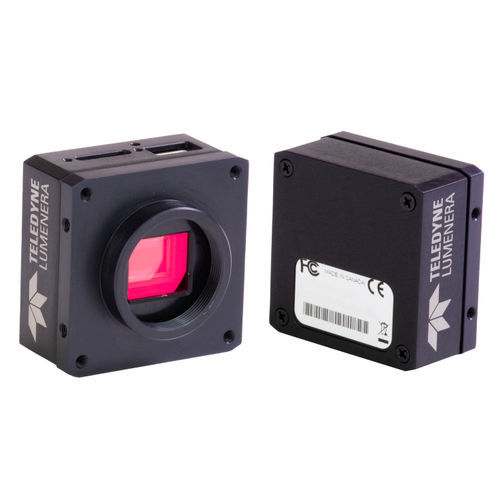

Industrial camera Lt-C/M2020

for scientific applicationsagriculturefor traffic monitoring

Compact Design in Mind The Teledyne Lumenera Lt-C/M2020 camera, like the others in the compact Lt Series, allows for cable connection on the side of the camera instead of at the back. Using the side of the camera for cabling allows for a much thinner vision system because the camera can lie flush against other components. With a 3.2 megapixel resolution and a fast 55 fps frame rate, the Lt-C/M2020 camera captures images in a wide variety of application environments. This form factor is ideal for aerial imaging systems such as, unmanned aerial vehicles (UAVs) by reducing the weight and size of the vision system. TELEDYNE LUMENERA LT-C/M2020 CAMERA HIGHLIGHTS •Color or monochrome Sony® Pregius™ IMX265 global shutter CMOS sensor with 1/1.8” optical format •3.2 megapixel camera with fast frame rates of 55 fps at full resolution (2064 X 1544) •High-Speed USB 3.1 Gen 1 interface for fast image delivery and simplified connectivity •Compact form factor measuring 45 mm x 45 mm x 36.1 mm •Locking industrial micro USB on the side for power and control •Region of Interest (ROI) option to provide higher frame rates •Selectable 8 or 12-bit pixel data •Multiple data rates supported, each optimized for lowest noise performance SOFTWARE PLATFORM OPTIONS •USB3 Vision compliant SDK •Teledyne Lumenera Camera SDK (Windows and LINUX) KEY APPLICATIONS •Aerial imaging •Precision agriculture •Portable / OEM Devices •Outdoor imaging •Intelligent Traffic Systems (ITS) •Life sciences •Industrial inspection solutions
