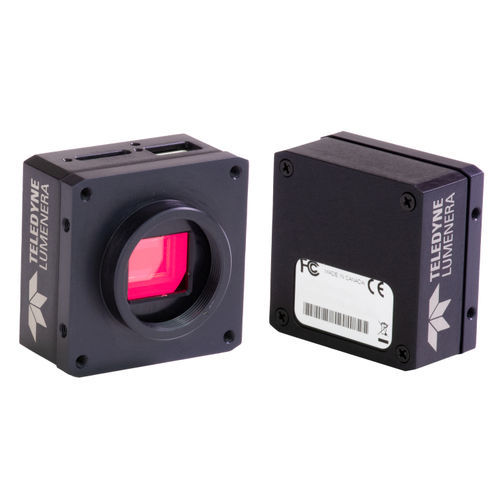

Camera for scientific applications Lt-C/M5500

agriculturefor traffic monitoringfor aerospace applications

Engineered to meet the challenges of low-light imaging applications Like all of the Lt Series cameras, the Teledyne Lumenera Lt-C/M5500 camera has a robust compact enclosure, fully-locking USB3 connectors, and is built for rugged 24/7 use. Equipped with the Sony® IMX183 rolling shutter CMOS sensor, a resolution of 20 megapixels, and using back illumination technology, these new cameras perform in a wide variety of imaging applications with low or changing light conditions. TELEDYNE LUMENERA LT-C/M5500 CAMERA HIGHLIGHTS •Color or monochrome Sony IMX183 rolling shutter CMOS sensor with 1” optical format •20 megapixel camera with fast frame rates of 19.6 fps at full resolution (5472 x 3648) •High-Speed USB 3.1 Gen 1 interface for fast image delivery and simplified connectivity •Compact form factor measuring 45 mm x 45 mm x 36.1 mm •Locking industrial micro USB on the side for power and control •Region of Interest (ROI) option to provide higher frame rates •Selectable 8 or 12-bit pixel data •Multiple data rates supported, each optimized for lowest noise performance SOFTWARE PLATFORM OPTIONS •USB3 Vision compliant SDK •Teledyne Lumenera Camera SDK (Windows and LINUX) KEY APPLICATIONS •Aerial imaging •Precision agriculture •Portable / OEM Devices •Outdoor imaging •Intelligent Traffic Systems (ITS) •Life sciences •Industrial inspection solutions
