Industrial camera Lt-C/M3200B

agriculturehigh dynamic rangeinspection

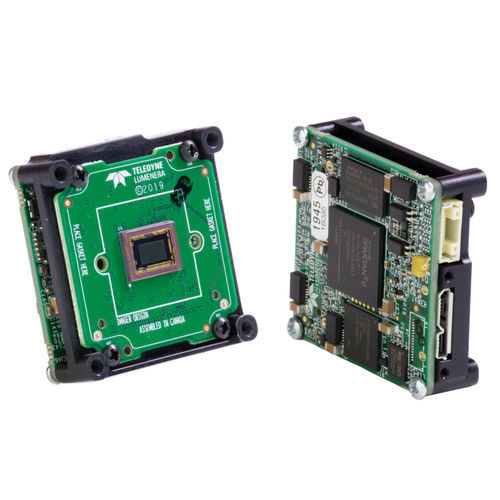

Tough Applications - Clear Images In challenging outdoor imaging applications, having the ability to capture clear images in varying lighting conditions is key. The 7.1 megapixel Sony® Pregius™ IMX428 is capable of large full well capacity and brings increased dynamic range to the Lt-C/M3200B camera. This, in combination with larger pixel sizes, also allows for high levels of detail in low light environments. TELEDYNE LUMENERA LT-C/M3200B BOARD LEVEL CAMERA HIGHLIGHTS •Color or monochrome Sony Pregius IMX428 global shutter CMOS sensor with 1.1” optical format •7.1 megapixel camera with fast frame rates of 50 fps at full resolution (3216 x 2208) •High-Speed USB 3.1 Gen 1 interface for fast image delivery and simplified connectivity •Compact form factor measuring 40 mm x 40 mm x 17 mm •Locking industrial micro USB on the side for power and control •High Conversion Gain (HCG) allows camera to capture clearer images in low-light •environments with reduced read-noise •Region of Interest (ROI) option to provide higher frame rates •Selectable 8 or 12-bit pixel data •Multiple data rates supported, each optimized for lowest noise performance SOFTWARE PLATFORM OPTIONS •USB3 Vision compliant SDK •Teledyne Lumenera Camera SDK (Windows and LINUX)
