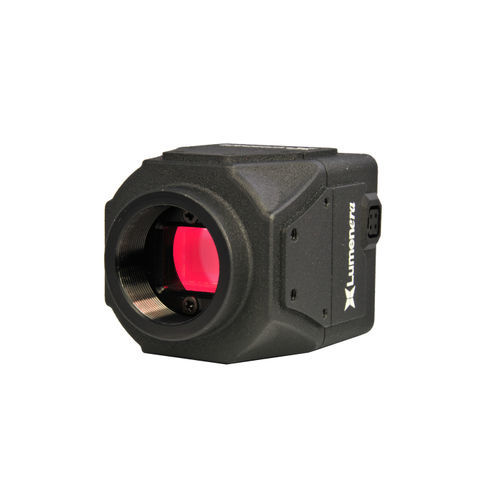

Industrial camera Lt345R

machine visionfor scientific applicationsmeasuring

Fast Frame Rates – Low Noise Images: Using the Sony Pregius® global shutter CMOS IMX252 sensor, the Lumenera Lt345R provides the fastest full resolution images possible from this sensor. Combining a 3.45 µm pixel size, CMOS global shutter architecture, and very low noise, the Lt345 is cost effective, off-the-shelf solution for machine vision, life sciences, and high motion applications. LUMENERA LT345R CAMERA PRODUCT HIGHLIGHTS •Color or monochrome Sony IMX252 electronic global shutter CMOS sensor with 1/1.8” optical format •Fast frame rates of 120 fps at full resolution (2064 x 1544) •3.2 megapixel color and mono solutions •High-Speed USB 3.1 Gen 1 interface for fast image delivery and simplified connectivity •P-Iris connector for support of precise iris lens control •Compact, robust form factor measuring 44 x 44 x 61 mm •Locking industrial micro USB and Hirose GPI/O connector for power and control of •peripherals and synchronization of lighting •Region of Interest (ROI) option to provide higher frame rates •Selectable 8 or 12-bit pixel data •Multiple data rates supported, each optimized for lowest noise performance PLUG-AND-PLAY WITH NO FRAMEGRABBER The compact, robust design of this camera, measuring 44 x 44 x 61 mm, allows for easy integration into tight spaces and systems. The locking USB 3.1 Gen 1 cabling interface ensures delivery of data and power and a simple plug-and-play installation with distances of up to 100m between cameras and a processing system. An expensive framegrabber is not required. USB3 Vision compliant.
