Traffic monitoring camera Lt425

industrialdigitalmonitoring

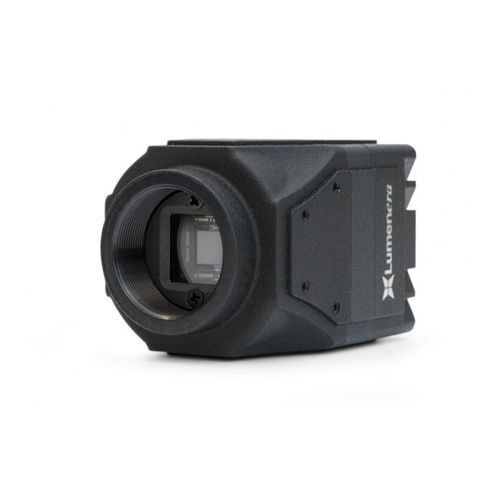

Lumenera’s Lt425 enclosed digital camera is built for rugged 24/7 use. A proven high resolution 1” CMOS sensor with a fully electronic global shutter that captures excellent quality, high-speed images with zero blur. The industrial-grade version of this camera is ideally suited for applications that include traffic monitoring, Automatic License/Number Plate Recognition (ALPR/ANPR), high-speed inspection and motion control. This camera can be customized to suit OEM designs and is available in a scientific-grade. LUMENERA LT425 CAMERA PRODUCT HIGHLIGHTS •CMOSIS CMV4000 Rev3 CMOS 4.0 megapixel sensor with electronic global shutter •Color, mono or NIR sensor with 1” optical format providing a resolution of 2048 x 2048 using 5.5 µm2 pixels •High frame rates: 90 fps at full resolution •Zero loss 128 MB RAM frame buffer for reliable image delivery in demanding situations •4 GPI/O: 1 optically isolated output, 1 optically isolated input and 2 configurable I/O ports •Simplified cabling – video, full camera control and power over a single locking micro USB 3.0 cable •Region of Interest (ROI) option to provide higher frame rates •Selectable 8 or 12-bit pixel data •FCC Class B, CE certified / DirectShow compatible •Complete Windows and Linux SDKs available •NEAR INFRA-RED (NIR) SENSITIVITY: Lumenera offers NIR sensitivity enhanced versions of •the Lt425 camera, that has higher quantum efficiency (QE) for wavelengths above 600 nm. •Around 900 nm the QE is about doubled and increases from 8% to 16%. PLUG-AND-PLAY WITH NO FRAMEGRABBER The compact, lightweight design of this camera, measuring 43 x 43 x 55 mm, ensures easy integration into tight spaces and enclosures.
