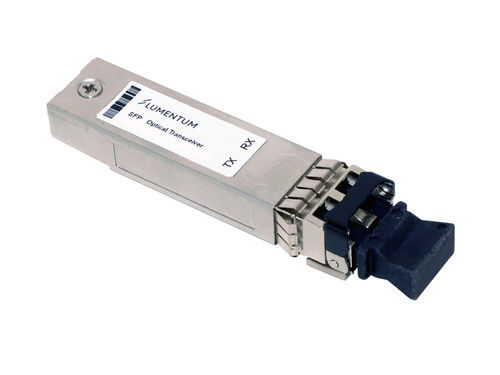

Fiber optic transceiver PLRXPL-Vx-SH4-23-N Series

8-channelhigh-speedSFP

NOTE: Effective Dec 2008, the 8 GFC SFP+ transceiver (Models PLRXPL-VC-SH4-23-N and PLRXPL-VE-SH4-23-N) replaces the 8 GFC SFP+ Transceiver (Models PLRXPL-VC-SH4-21-N AND PLRXPL-VC-SH4-22N) (PDF, .34 MB). The lead-free and RoHS-compliant small form factor pluggable (SFP+) transceiver from Lumentum improves the performance for 8 Gigabit Fibre Channel (8GFC) applications, and is ideal for high-speed, storage area network applications. This transceiver features a highly reliable, 850 nm, oxide, vertical-cavity surface-emitting laser (VCSEL) coupled to an LC optical connector. The transceiver is fully compliant to the FC-PI-4, and the SFP+ specifications at 8.5 G, 4.25 G and 2.125 G bit rates, with internal AC coupling on both transmit and receive data signals. The all-metal housing design provides low EMI emissions in demanding 8 G applications and conforms to IPF specifications. An enhanced digital diagnostic feature set allows for real-time monitoring of transceiver performance and system stability, and the serial ID allows for customer and vendor system information to be stored in the transceiver. Transmit disable, loss-of-signal, and transmitter fault functions are also provided. The small size of the transceiver allows for high-density system designs that, in turn, enable greater total bandwidth.
