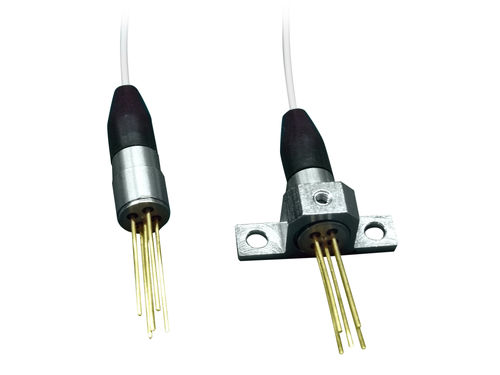

Photodiode receiver

for fiber opticsrugged

The Lumentum 2.5G APD/TIA series fiber pigtail receivers incorporate a 60-front-illuminated avalanche photodiode (APD) packaged with a transimpedance amplifier (TIA) and a single-mode fiber pigtail, designed to operate up to 2.5 Gbps. The 2.5G APD/TIA series receivers are assembled in a rugged coaxial fiber pigtail package with a choice of connector type. Standard choices for connector type LC and FC/SC with SPC/APC end faces are available. Features Case grounded hermetic five-pin TO-46 coaxial package Separate APD and TIA bias inputs, allowing optimization of operating points and noise immunity −40 to +85°C operating temperature range with −34 dBm typical sensitivity Applications Passive Optical Networks and FTTx applications GE-PON GPON Access and Metro networks SONET OC-48 LR-2 receivers Compliance Telcordia qualified, front-illuminated InP based APD
