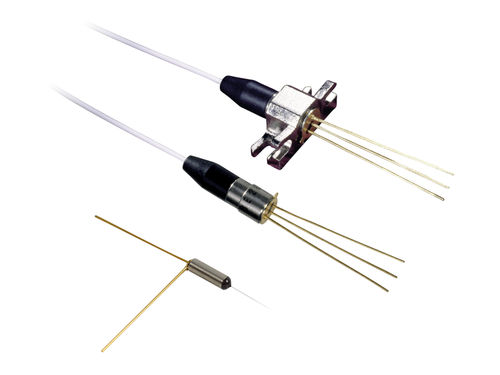

InGaAs photodiode EPM 6xx-series

PIN

Lumentum EPM 6xx-Series PIN photodiodes are designed for optical network monitoring applications. The photodiode die is fabricated with a proprietary InGaAs process in our wafer fab and assembled into a hermetically-sealed package with antireflective-coated lens. A stainless steel bushing actively couples the fiber to the package. The fiber is reinforced with a rubber boot to relieve fiber-bending stresses. EPM 6xx-Series photodiodes can be produced with a variety of industry-standard connectors or no connector at all. They are also available with mounting brackets for both vertical panel and horizontal flush-to-board mounting. Low-leakage versions (EPM 605LL and EPM 606LL) of the EPM 605 and EPM 606 are available with the same features, connectors, and brackets. Small form-factor (SFF) packages EPM635 and EPM635-75 are designed for SFF applications. Features Electro-optical: Low back reflection Electro-optical: High responsivity in L-band at 1625 nm (EPM 606) Applications C- and L-Band monitoring High-sensitivity monitoring EDFA and DWDM 40 and 10G line monitoring 980 forward pump 1310 and 1550 nm PONs
