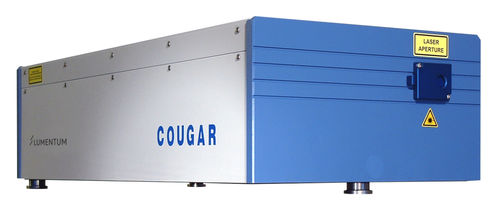

Picosecond laser COUGAR

solid-statemultiple-wavelengthwater-cooled

The COUGAR high-average power, passively mode-locked, diodepumped, solid-state laser system employs SESAM® technology. Combining a saturable absorber and longitudinal pumping yields continuous clean picosecond pulses with exceptional amplitude and phase noise performance. The COUGAR turnkey laser system can be customized to user-defined 20 to 400 MHz repetition rates, increased pulse width, frequency conversion, and timing synchronization with the CLX-1100 phase-locked-loop feedback system. The COUGAR laser achieves its specified performance level within a few minutes and requires very little maintenance. Features Passively mode-locked DPSSL Closed-loop water cooling Turnkey operation Low maintenance Applications Flow cytometry Time-resolved fluorescence spectroscopy Multiphoton excitation Seeding amplifier Pump-probe experiments Nonlinear optics Options Multiple output beams Extended pulse widths Second harmonic generation (SHG) Remote control Clock synchronization RS232
