Continuous wave laser CDPS532M Series
solid-stategreeninstrumentation

Continuous wave laser - CDPS532M Series - LUMENTUM - solid-state / green / instrumentation
Continuous wave laser - CDPS532M Series - LUMENTUM - solid-state / green / instrumentation
Add to favorites
Compare this product


Characteristics

Operational mode
continuous wave
Technology
solid-state
Spectrum
green
Applications
instrumentation
Other characteristics
low-noise, OEM, compact, precision, single longitudinal mode, DPSS
Power

Max.: 0.05 W
(0 hp)

Min.: 0.01 W
(0 hp)

Wavelength

532 nm

Description

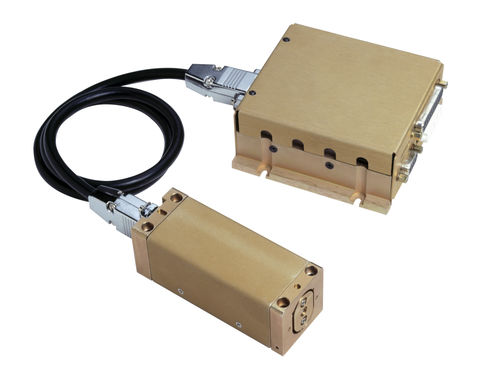

Our compact, continuous wave, 532 nm, diode-pumped solid-state lasers feature a laser head and multi-function controller that provide up to 50 mW of single-longitudinal mode optical power with remarkable beam quality and exceptional optical noise characteristics. Diagnostic features include critical laser parameters such as output power, pump diode current, and operating hours. Control functions include system interlocks, optical power control, and more. We’ve combined Lumentum continuous-wave diode-pumped solid-state technologies with a precision beam-shaping telescope to offer a low-divergence laser with excellent optical mode quality. The CDPS532S features an extremely compact, cost-effective, and efficient design by eliminating final collimating optics. This design element permits installing in confined spaces with direct coupling into OEM optical assemblies. CDPS532S controllers are powered by 5 VDC and incorporate analog and RS232 interfacing for all necessary laser system control and diagnostics. Features Compact Low noise Excellent beam quality High reliability Applications Biotechnology instrumentation Semiconductor inspection Metrology
