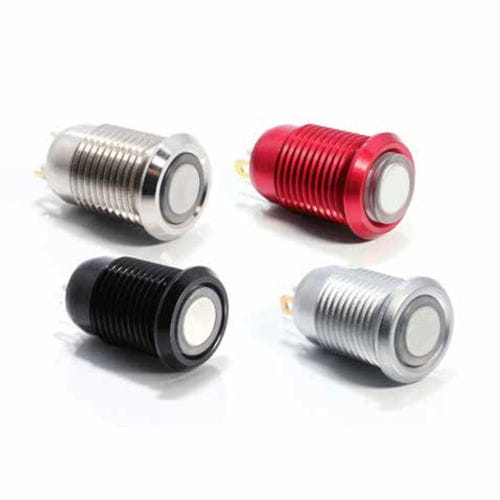

Touch push-button switch W12M/WS12M/WG12M series

waterproofIP67metal

ITW Lumex Switch W12M series is a pushbutton switch in 12mm, metal housing/bezel, lighting indication pushbutton. Support with SPST, Normal open, Terminal and wire leads harness options. The panel mount can reach to IP67 waterproof, wire leads harness even offer bottom sealing to offer high pull out force and harsh environment application. Key Features: Size: 12mm Solder/PC Terminal & wire leads Operation Temperature: -40 to 85℃ SPDT: 1 NO / 1 NC UL61580 Certify Temperature range - -40 to 85℃(non-lighting) -25 to 85℃(Lighting) -25 to 65℃(maintain) Button - Stainless, Alumintum Anodized or special Bezel - Stainless, ZincAlloy plated, Aluminum anodized, Round shape Type - Momentary or Maintain (latching) as optional > Water proof Silicon CAP is optional for application Connection - Terminals and wire leads > Through-hole terminal > Solder terminal > wire leads Indication - Lighting indication. Halo/Ring indication is optional for 12M series LED Color: Green, Blue, Red, White, Yellow … Panel cutout - 12mm Certify, Compliance - RoHS compliance Reach compliance Application: Office equipment Medical equipment Industrial machinery Mass transportation Food processing equipment Outdoor Controls Joystick Controls
