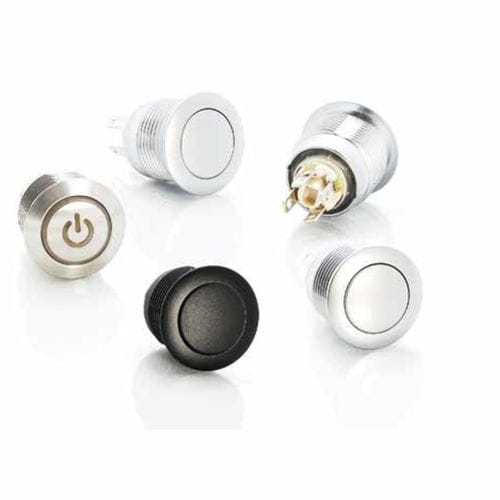

Touch push-button switch WSA57M series

waterproofIP67metal

ITW Lumex Switch, WSA57M series is a pushbutton switch in 16mm metal housing/bezel, lighting indication pushbutton. Support with SPST, Normal open and normal close circuitry and Terminal and wireleads harness options. The panel mounting can reach to IP67 water proof, wireleads harness even offer bottom sealing to offer high pull out force and harsh environment application. Key Features: Size: 16mm 5A@28VDC Solder/PC Terminal & wire leads Operation Temperature: -40 to 85℃ SPDT: 1 NO / 1 NC UL61580 Certify Temperature range - -40 to 85℃ -25 to 85℃ -25 to 65℃ Button - Metal button: stainless, stainless plated, aluminum anoided Non-lighted, Halo/Ring, Standby Power logo, special icon Bezel - Metal Bezel: Stainless, Zinc Alloy plated, Aluminum anoided > waterproof Silicon CAP is optional for application Connection - Terminals and wire leads > Through-hole terminal > Solder terminal > wire leads Indication - Lighting indication. Dot, Halo/Ring and standby power logo indication is optional LED Color: Green, Blue, Red, White, Yellow … Panel cutout - 16mm Certify, Compliance - UL 61058 Certify RoHS compliance Reach compliance Application: Office equipment Medical equipment Industrial machinery Mass transportation Food processing equipment Outdoor Controls Joystick Controls
