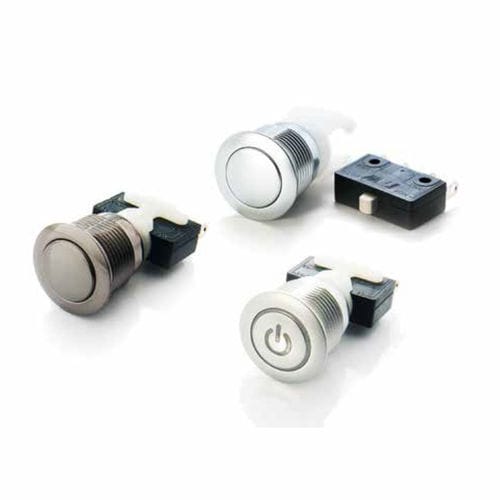

Touch push-button switch WH57M series

waterproofIP67metal

ITW Lumex Switch WH57M series is a pushbutton switch in 16mm metal housing/bezel, lighting indication pushbutton. Support with SPST, Normal open and normal close circuitry and Terminal and wire leads harness options. The panel mounting can reach to IP67 waterproof, wire leads harness even offer bottom sealing to offer high pull out force and harsh environment application. Key Features: Size: 16mm Rating: 10A@120VAC 5A@28VDC MOMENTARY:500k CYCLES NOMINAL MAINTAINED: 50k CYCLES NOMINAL Solder/PC Terminal & wire leads Operation Temperature: MOMENTARY: -40℃ to +85℃ MAINTAINED: -40℃ to +65℃ LED Lighting: -25℃ to +85℃ SPDT: 1 NO / 1 NC UL Certify Application: Office equipment Medical equipment Industrial machinery Mass transportation Food processing equipment Outdoor Controls Joystick Controls Button - Metal button: stainless, stainless plated, aluminum anoided Non-lighted, Halo/Ring, Standby Power logo, special icon Bezel - Metal Bezel: Stainless, Zinc Alloy plated, Aluminum anoided Indication - Lighting indication. Dot, Halo/Ring and standby power logo indication is optional LED Color: Green, Blue, Red, White, Yellow … Panel cutout - 16mm
