Blue LED LDM-LXF1017030UVC

SMDpowerboard

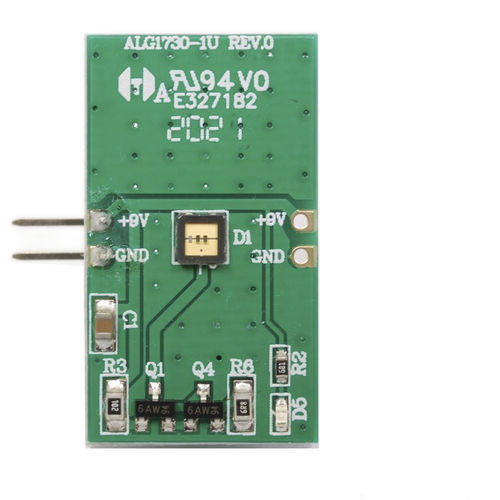

Circuits are designed to provide constant current output and ensure each UCV LED is protected. Plug and Play, connecting any power source to provide 8~9V DC and starting to evaluate. An addtional blue LED is built on the evaluation board to indicate the on/off state of UVC LED. Note: If the application is constant light on, to add a heat sink is recommended otherwise the operated current will drop to 90mA for each LED Customer can use a power supply instrument to power it or design a power supply circuit by themselves or use six 1.5V AA battery in serial to make it 9VDC to drive it. Applications / Uses Disinfection Portable Sterilization One Lumex UVC LED DUO, 10mW - SML-LXF3535UVCC10 SML-LXF3535UVCC10 - Two UVC Chips, UVC + UVC
