Blue LED LDM-LXD3052030UVCchipprinted circuit board-mountedpower
Add to favorites
Compare this product
Characteristics
- Spectrum
- blue
- Configuration
- chip
- Mounting
- printed circuit board-mounted
- Other characteristics
- power
- Product applications
- sterilization, board, LED
- Electrical power
0.01 W
Description

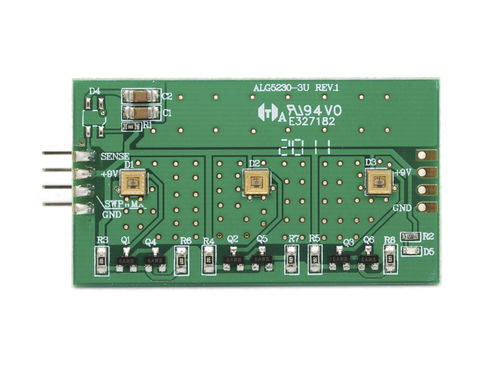

Three Lumex 10mW UVC LEDs
Circuits are designed to provide constant current output and ensure each UCV LED is protected.
Plug and Play, connecting any power source to provide 8~9V DC and starting to evaluate.
An addtional blue LED is built on the evaluation board to indicate the on/off state of UVC LED.
Note:
If the application is constant light on, to add a heat sink is recommended otherwise the operated current will drop to 90mA for each LED
Customer can use a power supply instrument to power it or design a power supply circuit by themselves or use six 1.5V AA battery in serial to make it 9VDC to drive it.
Applications / Uses
Disinfection
Portable Sterilization
