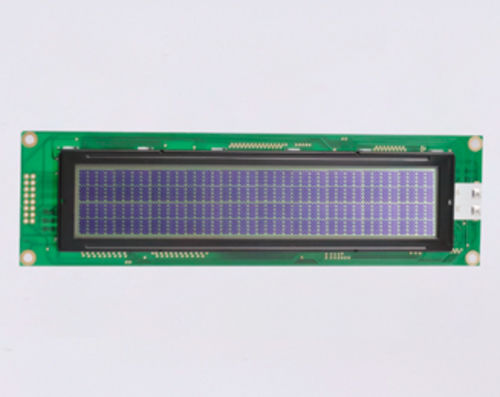

LCD display module LCM-S0 series

20 x 240 x 4industrial

Reliable user-interface display Low power consumption Very long operational life Custom sizes available Applications / Uses Communications equipment Industrial controls Life safety equipment Medical equipment Meter displays Security electronics Test and measurement Operating Temperature S = Standard ( 0˚ C to 50˚ C ) H = High Temp ( -20˚ C to +70˚ C ) Model Number (for alphaCharacter and Character) For Dot Matrix & Graphic Model 01602 = 16 character x 2 lines 12864 = 128 columns x 64 rows For AlphaCharacter & Character 401C40 = 4 character x 1 line, 0.40" 4x1C45 = 4.5 character x 1 line, 0.45"; x - represents 1/2 column Display Type D = Dot Matrix G = Graphic M = Custom Fluid Type T = Twisted Nematic (TN), 5V S = Super Twisted Nematic (STN), 5V W = Flim Compensated (FSTN), 5V K = Twisted Nematic (TN), 3V L = Super Twisted Nematic (STN), 3V F = Flim Compensated (FSTN), 3V Polarizer Mode R = Reflective F = Transreflective M = Transmissive **** Additional part number sequence for nondefault setting Display Mode Default = Positive image (no letter, or if more description follows, use "-") N = Negative image Viewing Direction Default = 6 O'Clock (no number) 1 = 12 O'Clock
