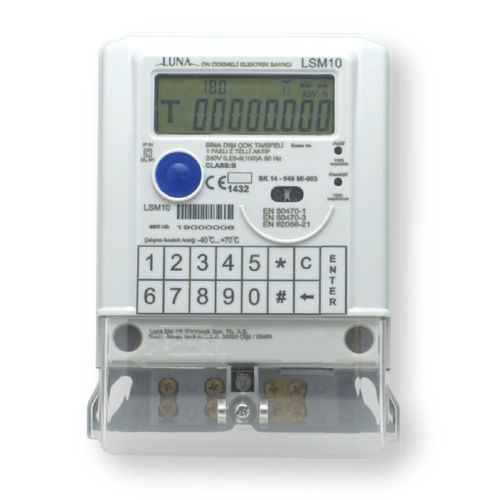

Single-phase electric energy meter LSM10

wall-mounteddigitalprogrammable

• Singlephase 2 wire meter • Active-Reactive/Import-Export • Active Class: B/C – Reactive Class: 2 • Direct connected • 5(100)A current • 230VAC – 240VAC reference voltage • 1000imp/kWh – 1000imp/kVArh • -40°C…+70°C temp. range • Optical port communication Optional features • RS485 communication port • PLC communication port • GSM communication port • RF communication port • RFID communication port • DLMS-Cosem support • Anti magnetic (AML) • Detection and record magnetic interventions • Latching relay (100A) • LCD backlight • Export energy measurement • Neutral current measurement
