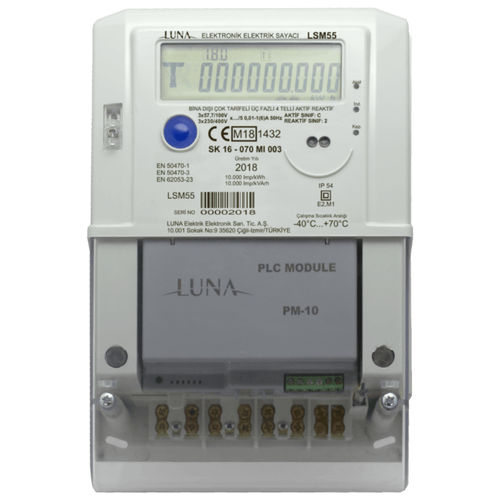

Three-phase electric energy meter LSM55wall-mountedRS-48550 Hz
Add to favorites
Compare this product
Characteristics
- Type
- three-phase
- Assembly
- wall-mounted
- Other characteristics
- RS-485, 50 Hz, with LCD display, smart
- Voltage
58 V, 230 V, 400 V
- Primary current
1 A, 6 A
Description
Threephase 4 wire meter
Active-Reactive / Import-Export
Active Class: C Reactive Class: 2
CT / VT / CT-VT connected
1(6)A current
3 x 58/100VAC 3 x 230/400VAC reference voltage
10.000imp/kWh – 10.000imp/kVArh
-40°C…+70°C temp. range
Optical port communication
Optional features
RS485 communication port
RFID module option
Detection and record magnetic interventions
LCD backlight
Export energy measurement
Total Harmonic Distortion (THD) measurement
