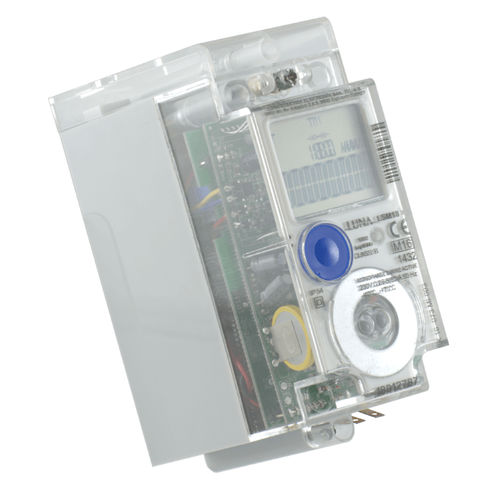

Single-phase electric energy meter LSM18
panel-mountRS-48550 Hz

Single-phase electric energy meter - LSM18 - Luna Elektrik - panel-mount / RS-485 / 50 Hz
Single-phase electric energy meter - LSM18 - Luna Elektrik - panel-mount / RS-485 / 50 Hz
Single-phase electric energy meter - LSM18 - Luna Elektrik - panel-mount / RS-485 / 50 Hz - image - 2
Single-phase electric energy meter - LSM18 - Luna Elektrik - panel-mount / RS-485 / 50 Hz - image - 3
Add to favorites
Compare this product


Characteristics

Type
single-phase
Assembly
panel-mount
Other characteristics
RS-485, 50 Hz, with LCD display
Voltage

230 V

Primary current

5 A, 60 A

Description

• Singlephase 2 wire meter • Active / Import-Export • Active Class: B Reactive Class: 2 • Direct connected • 5(60)A current • 230VAC reference voltage • 1000imp/kWh – 1000imp/kVArh • -40°C…+70°C temp. range • Optical port communication Optional features • RS485 communication port • Anti magnetic (AML) • Detection and record magnetic interventions • Latching relay (100A) • LCD backlight • Export energy measurement
