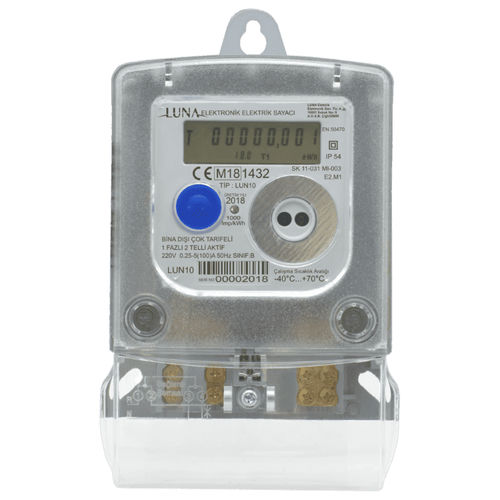

Single-phase electric energy meter LUN10

wall-mounteddigitalRS-485

• CE certified on 50470 standards • Non-volatile memory • 24 logs of index storage memory • 10 units terminal cover intrusion registry and warning • Main cover intrusion registry and warning • 10 logs of phase failure registry • Clips and screws MS-58 • Previous month data index display on LCD screen • Instant current and voltage display on LCD screen • Load Profile 15 minutes / 90 days (expandable to 365 days) • Singlephase 2 wire meter • Active-Reactive/Import-Export • Active Class: B • Direct connected • 5(100)A current • 230VAC reference voltage • 1000imp/kWh – 1000imp/kVArh • -40°C…+70°C temp. range • IP54 protection class • Optical port communication
