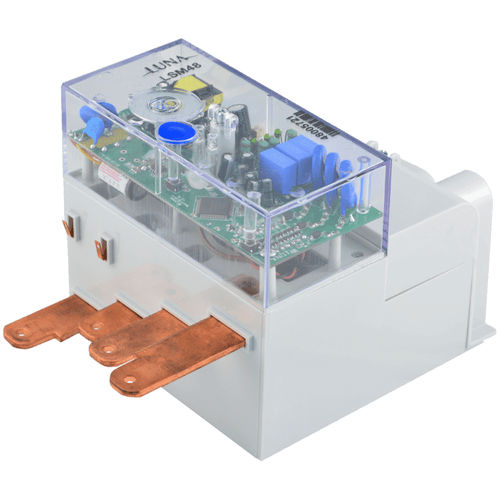

Three-phase electric energy meter LSM48plug-inRS-48550 Hz
Add to favorites
Compare this product
Characteristics
- Type
- three-phase
- Assembly
- plug-in
- Other characteristics
- RS-485, 50 Hz, smart
- Voltage
230 V, 400 V
- Primary current
10 A, 250 A
Description
Threephase 4 wire meter
Active-Reactive / Import-Export
Active Class: B Reactive Class: 2
Direct connected
10(250)A
3 x 230/400VAC reference voltage
1000imp/kWh – 1000imp/kVArh
-40°C…+70°C temp. range
Optical port communication
Optional features
RS485 communication port
Anti magnetic (AML)
Detection and record magnetic interventions
Latching relay (100A)
LCD backlight
Export energy measurement
