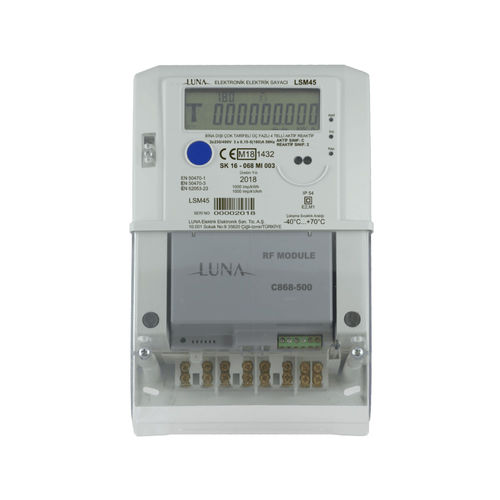

Three-phase electric energy meter LSM450wall-mountedRS-48550 Hz
Add to favorites
Compare this product
Characteristics
- Type
- three-phase
- Assembly
- wall-mounted
- Other characteristics
- RS-485, 50 Hz, with LCD display, smart
- Voltage
58 V, 230 V, 400 V
- Primary current
1 A, 6 A
Description
• Threephase 4 wire meter
• Active-Reactive / Import-Export
• Active Class: B/C Reactive Class:2
• CT / CT-VT connected
• 1(6)A current
• 3 x 58/100VAC 3 x 230/400VAC
reference voltage
• 10.000imp/kWh – 10.000imp/kVArh
• -40°C…+70°C temp. range
• Optical port communication
Optional features
• RS485 communication port
• DLMS-Cosem support
• Detection and record magnetic
interventions
• LCD backlight
• Export energy measurement
• Total Harmonic Distortion (THD) measurement
