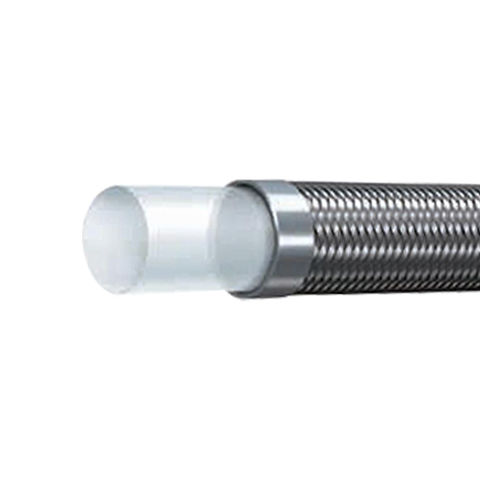

Chemical product hose LT400S for compressed airfor oilgrease
Add to favorites
Compare this product
Characteristics
- Use
- for chemical products, for compressed air, for oil, grease
- Material
- stainless steel, PTFE
- Applications
- high-temperature, conveying, FDA, food-grade
- Other characteristics
- chemical-resistant, oil-resistant, with smooth inner surface, non-adhesive, corrosion-resistant, stainless steel-braided
- Inner diameter
Min.: 5 mm
(0.197 in)Max.: 25 mm
(0.984 in)- Outer diameter
Min.: 7.86 mm
(0.309 in)Max.: 29.75 mm
(1.171 in)- Pressure
Min.: 70 bar
(1,015.264 psi)Max.: 280 bar
(4,061.057 psi)- Temperature
Min.: -60 °C
(-76 °F)Max.: 260 °C
(500 °F)
Description
Application：The inner wall of the product is smooth, with high temperature resistance, chemical corrosion resistance, non-adhesive substances and other characteristics, and can be customized conductive / insulation and food-grade (in accordance with FDA standards) inner layer. Suitable for conveying compressed air, ester materials (such as grease), viscous materials (such as glue), corrosive chemicals, and oil and other fluids at high temperatures
Inner layer：PTFE
Reinforcement layer：high strength 304 stainless steel wire braid
Outer layer：high strength 304 stainless steel wire braid
