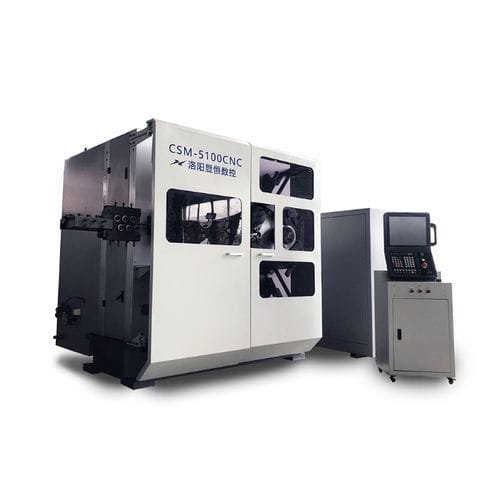

Compression spring machine CSM-5100

for CNC machinescoiling

CSM-5100CNC Spring coiling Machine Wire diameter：3-10mm Specifications of CSM-5100CNC compression Spring coiling Machine: Wire Dia 6-10 mm Max. Outside Diameter 110 mm Speed of the Wire Feed 93 m/min Total power of Motors 69.9 Kw Net Weight 10000 Kg Machine Dimension 2350*1600*1870 Motor Samyo or Yaskawa servo motor in Japan Driver part Sanyo or Yaskawa servo motor driver Computer control system Taiwan hust or Topcontech(TPK) Material of the wire 65Mn,60Si2Mn,1Cr18Ni9 ,55CrSi,50CrV ,51CrV4 and so on Advantages of CSM 5100 CNC compression Spring coiling Machine: 1) The large parts are made of whole steel plate, which increases the strength of the equipment. 2) The gear is machined by Shenyang machine tool factory, the quality is stable and reliable. 3) The transmission part adopts planetary reducer to reduce noise and improve accuracy. 4) Roller compaction, adopt pneumatic hydraulic pressure in place of hydraulic device to increase the pressure of the roller.
