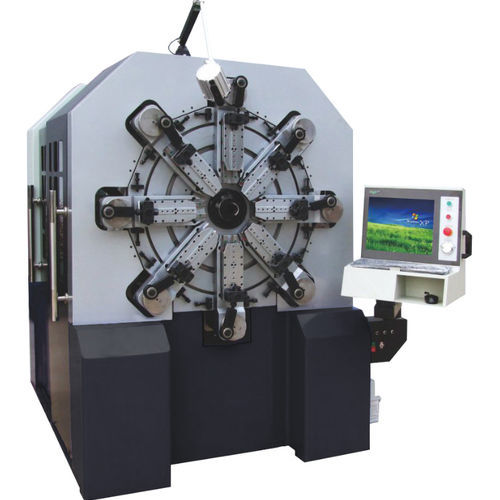

Wire forming machine CFM-1245for metalmetalCNC
Add to favorites
Compare this product
Characteristics
- Product handled
- for metal, for wires
- Treated material
- metal
- Control
- CNC
- Operating mode
- CNC
- Other characteristics
- precision
Description
With Camless design and free Rocker Arm technology to achieve high precision and production efficiency
Wire diameter：1.2-4.5mm
Axis count: 12 axis
Specification :
Wire dia: - ￠1.2~4.5mm
Max wire feed: - 10000.00mm
Min wire feed: - 0.01mm
Max.wire Food speed: - 80m/min
Max. Wire Feed Length: - Unlimited
Axis number: - 12
Program storage: - More than 2000pcs
Probe: - 3
Dimensions: - 2150*1900*2070mm
Weight: - 4100kg
The input voltage: -
380v
VIDEO
