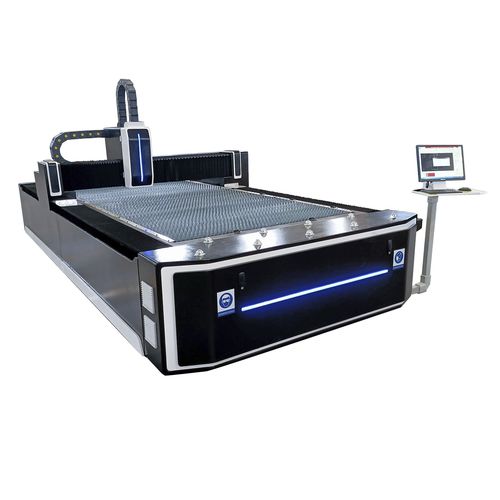

Fiber laser cutting machine SFX series

for metalsheet metalCNC

Working Area: 1500*3000mm(59*118in), 2000W/2300W Max Laser Source, Laser Wavelength: 1080nm, Beam Quality: <0.373mrad, Cutting Accuracy: ±0.05mm, Re-position Accuracy: ±0.03mm, Max. Acceleration: 1.2G, Max. Cutting Speed: 60m/min, Assist Gas: Air, Oxygen, Nitrogen, Cooling Method: Industrial Circulation Water Chiller, Aiming and Positioning: Red Dot. Working Voltage: 110V/220V/380V 50-60Hz(According to customer's local voltage). MAX Laser Source with modular design, the system is highly integrated, maintenance-free, and highly reliable. S&A Dual-temperature Water Chiller to keep the oscillator working properly. CypCut/CypOne Software System, simple and convenient operation and supports DXF/DWG format. RAYTOOLS Cutting Head with the BM series high-performance auto-focusing, mature and stable technology and a built-in motor drive unit. Continuous focusing can be set through the program to complete the fast perforation of thick plates and automatic cutting of plates of different thicknesses and materials. Imported servo with balanced and stable driving force, low noise, smooth movement, no error in synchronization, higher positioning accuracy, and faster positioning speed. High-strength aluminum beam with high strength, strong resistance to deformation, optimized to reduce weight, speed up movement, and greatly increase processing speed. Applicable Materials: Fiber laser cutting machine is widely used in carbon steel, manganese steel, stainless steel, color steel plate, foliate lamina, alumnum plate, alumnum alloy, brass, copper, titanium plate etc.
