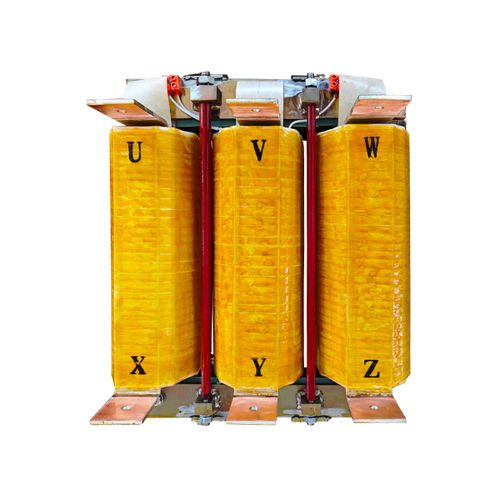

Inductor with AC output LSDZ01-7A/4mHcurrentpower factorthree-phase
Add to favorites
Compare this product
Characteristics
- Electrical characteristics
- harmonic, current, three-phase, power factor, with AC output
- Configuration
- line
- Other characteristics
- AC reactor
- Voltage
10 kV
Description
Connected in series at the input side of power-supply and inverter and applied to restrain the higher harmonics of input current, Limit the impact to inverter caused by grid voltage change and surge voltage; Effectively protect the rectifying unit of inverter; Improve the unbalance of three-phase power-supply; Promote the power factor of input power-supply.
Features
1.Damp-proof and waterproof.
2.Low losses, low level of noise, strong overload capacity,
3.High efficiency, and low temperature rise.
5.Tight coil coupling, Low magnetic flux leakage.
6.High structural strength, perfect anti-short-circuitability.
7.Reliable operation, high linearity, and with VPI process.
8.Core with grain-oriented cold-rolled silicon steel sheets.
9.Excellent performance with foil winding structure, small DC resistance, and the strong resistance to electromagnetic force.
Product Applications
Frequency conversion, photovoltaic (solar power system), wind power generation, renewable energy, medical equipment, etc.
