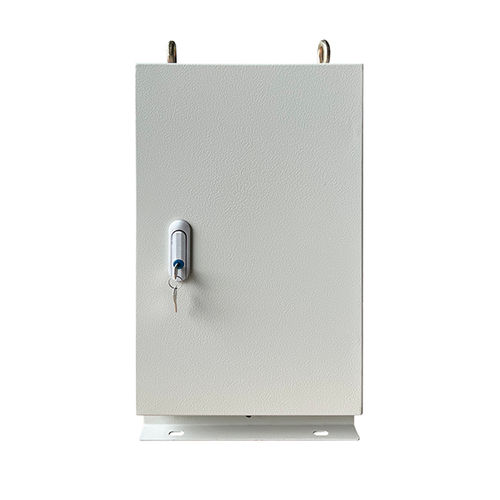

Isolation transformer WD45-JX electrical power supplydryfor industrial applications
Add to favorites
Compare this product
Characteristics
- Type
- isolation, electrical power supply
- Configuration
- dry
- Applications
- for industrial applications, for machinery, emergency power supply
- Electrical characteristics
- single-phase, low-voltage
- Mounting
- floor-standing
- Norms
- IEC, EN61558, RoHS, Tier 2 EU
- Other characteristics
- AC, amorphous core
- Output power kVA
5 kVA
(6.798106 hp)- Primary voltage
360 V, 400 V, 415 V
- Secondary voltage
110 V, 220 V
- Frequency
50 Hz, 60 Hz
Description
Product Overview:
A box-type transformer for constr. machinery, in a cabinet, offers stable aux. power. It's key to enhancing machinery's efficiency and reliability.
Specific Introduction:
1. Sturdy Cabinet, Endures Harshness：The cabinet is dust, water, and shock resistant. It withstands site elements, safeguards internals, and runs stably in tough conditions, extending lifespan.
2. Precise Voltage, Steady Running：With advanced regulators, it tracks input voltage, swiftly adjusts output. In complex power settings, it averts failures and disruptions from voltage swings, ensuring equipment runs smoothly.
3. Efficient Conv., Saves Energy：Using quality core and winding, it optimizes conversion. It cuts energy waste, heat, boosts utilization, cuts costs, aligns with green ideas, and aids continuous work..
Operation Environment
A)Altitude: Not exceeding 1000m, shall be derating used if above 1000m;
B)Ambient Temperature: -25D-55D;
C)Relative Humidity: <95%;
D)As to the installation site, to make sure no bad effect on transformer
insulation such as chemical déposition, dust, and other explosive or erosive medium.
