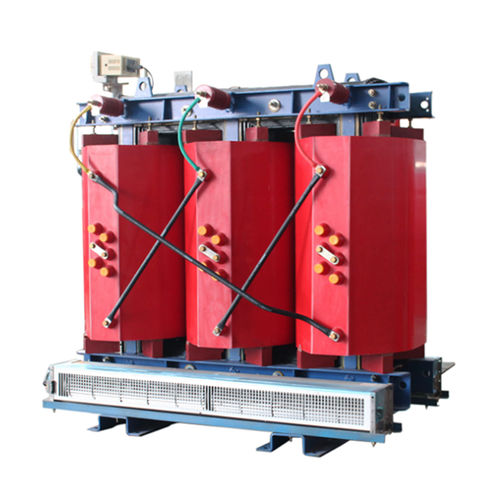

Epoxy resin transformer SC seriespowerdryindustrial
Add to favorites
Compare this product
Characteristics
- Type
- power
- Configuration
- dry
- Applications
- industrial
- Electrical characteristics
- three-phase, high-voltage
- Other characteristics
- epoxy resin, waterproof
- Output power kVA
Max.: 2,500 kVA
(3,399.052888 hp)Min.: 0.005 kVA
(0.006798 hp)- Primary voltage
Max.: 35 kV
Min.: 6 kV
- Secondary voltage
Max.: 10,000 V
Min.: 400 V
- Frequency
50 Hz, 60 Hz
Description
Water conservancy and hydropower engineering, chemical energy, rapid transit, photovoltaic inverter, etc.
Features
1. Damp-proof and waterproof, Low losses, strong overload capacity.
2. Maintenance free and easy installation, advanced technics and beautiful appearance.
3.High structural strength, perfect anti-short-circuitability, low level of sound.
Overall and Installation Dimensions
A) Altitude: Not exceeding 1000m, shall be derating used if above 1000m;
B) Ambient Temperature: -25℃~55℃.
C) Relative Humidity: ≤95%;
D) As to the installation site, to make sure no bad effect on transformer insulation, chemical deposition, dust, and other explosive or erosive medium.
E) The supply voltage approximates sinusoidal wave, and the three-phase voltage is relatively balanced.
