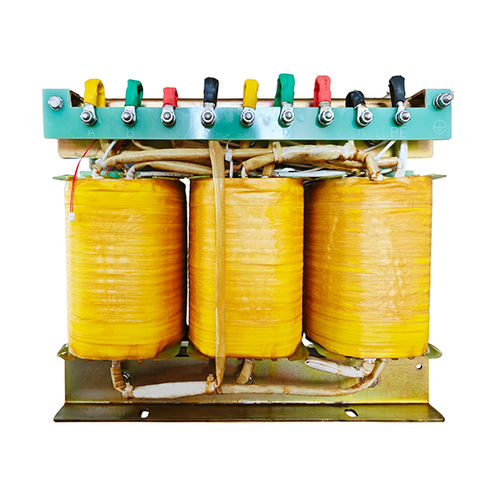

Isolation transformer SG-5Kdrythree-phaselow-voltage
Add to favorites
Compare this product
Characteristics
- Type
- isolation
- Configuration
- dry
- Electrical characteristics
- three-phase, low-voltage
- Other characteristics
- waterproof
- Output power kVA
30 kVA
(40.788635 hp)- Primary voltage
10 kV
- Secondary voltage
400 V
- Frequency
50 Hz, 60 Hz
Description
1.Damp-proof and waterproof, Low losses, strong overload capacity.
2.Maintenance free and easy installation, advanced technics and beautiful appearance.
3.High structural strength, perfect anti-short-circuitability, low level of sound.
Product Applications
Water conservancy and hydropower engineering, chemical energy, rapid transit, photovoltaic inverter, etc.
Operation Environment
A) Altitude: Not exceeding 1000m, shall be derating used if above 1000m;
B) Ambient Temperature: -25℃~55℃.
C) Relative Humidity: ≤95%;
D) As to the installation site, to make sure no bad effect on transformer insulation, chemical deposition, dust, and other explosive or erosive medium.
E) The supply voltage approximates sinusoidal wave, and the three-phase voltage is relatively balanced.
