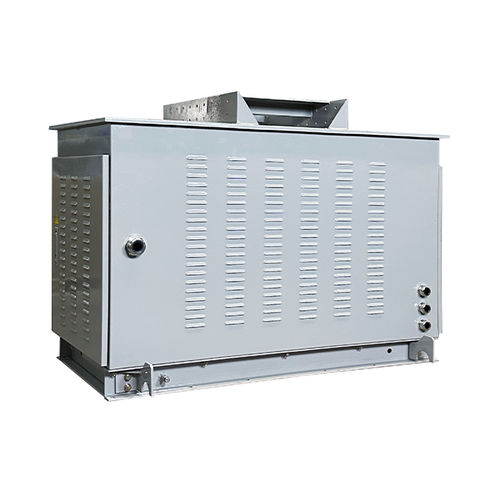

Isolation transformer ZSG-325k
powerdryfor photovoltaic applications

Isolation transformer - ZSG-325k - LUSHAN CHINA - power / dry / for photovoltaic applications
Isolation transformer - ZSG-325k - LUSHAN CHINA - power / dry / for photovoltaic applications
Isolation transformer - ZSG-325k - LUSHAN CHINA - power / dry / for photovoltaic applications - image - 2
Isolation transformer - ZSG-325k - LUSHAN CHINA - power / dry / for photovoltaic applications - image - 3
Isolation transformer - ZSG-325k - LUSHAN CHINA - power / dry / for photovoltaic applications - image - 4
Isolation transformer - ZSG-325k - LUSHAN CHINA - power / dry / for photovoltaic applications - image - 5
Add to favorites
Compare this product


Characteristics

Type
power, isolation
Configuration
dry
Applications
for photovoltaic applications
Electrical characteristics
three-phase, voltage
Mounting
floor-standing
Norms
IEC, EN61558, RoHS, Tier 2 EU
Protection level
IP56
Other characteristics
energy-saving, galvanically-isolated
Output power kVA

325 kVA
(441.876875 hp)

Primary voltage

2,400 V

Secondary voltage

Min.: 430 V

Max.: 2,400 V

430 V

Frequency

80 Hz

Description

Product Overview: The three-phase transformer with a fan and chassis, specially designed for vacuum sintering, adapts and converts electrical energy, provides stable energy for sintering equipment, ensures precise temperature control and reliable operation of the vacuum sintering process, and is a key support for high-temperature manufacturing. Specific Introduction: 1. Powerful Heat Dissipation Guarantee The chassis and the fan work together to build an efficient heat dissipation system. They quickly dissipate the heat generated during operation, effectively control the temperature rise. Even under the long-term high-load working conditions of vacuum sintering, it can maintain the stable performance of the transformer, avoid failures caused by overheating, and ensure the continuity of production. 2. Excellent Protection Performance The chassis has good sealing and is made of solid materials, effectively blocking the intrusion of impurities such as dust and moisture. Combined with the internal protective coating and insulation treatment, it prevents electrical components from being eroded by the environment, ensures the safe operation of the transformer in the complex environment of vacuum sintering, and prolongs the service life of the equipment. Operation Environment A) Altitude: Not exceeding 1000m, shall be derating used if above 1000m; B) Ambient Temperature: -25℃~55℃. C) Relative Humidity: ≤95%; D) As to the installation site, to make sure no bad effect on transformer insulation, chemical deposition, dust, and other explosive or erosive medium. E) The supply voltage approximates sinusoidal wave, and the three-phase voltage is relatively balanced.
