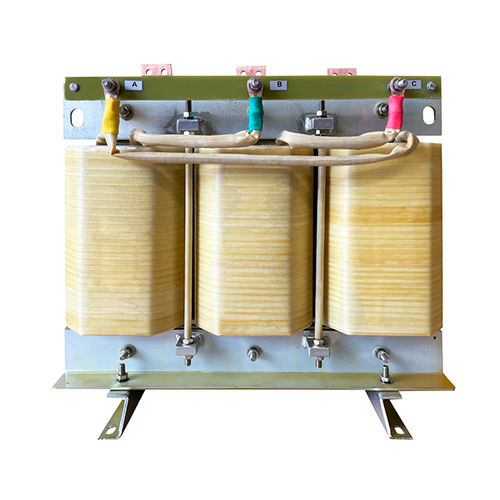

Power transformer SG-48k

isolationdryfor burners

Prod. Overview: Vacuum-sintered transformers are designed for low-volt., high-current apps., efficiently converting power and stably supplying for industries. Details: 1.High-perm. silicon steel sheets: Excel in magnetic permeability, cut hysteresis loss, handle saturation well under low-volt., high-current, ensuring stable voltage conversion. 2.Copper wire winding: Good conductivity, precise winding reduces resistance & copper loss, enables efficient current carrying for stable operation. 3.Vacuum impregnation: Forms dense insulation layer in vacuum, boosts insulation, prevents faults, resists harsh env., like moisture & dust. 4.Heat dissipation: Rational heat sink & duct design plus good thermal conductivity controls temp. rise, averts insulation aging & performance decline. Operation Environment A) Altitude: Not exceeding 1000m, shall be derating used if above 1000m; B) Ambient Temperature: -25℃~55℃. C) Relative Humidity: ≤95%; D) As to the installation site, to make sure no bad effect on transformer insulation, chemical deposition, dust, and other explosive or erosive medium. E) The supply voltage approximates sinusoidal wave, and the three-phase voltage is relatively balanced.
