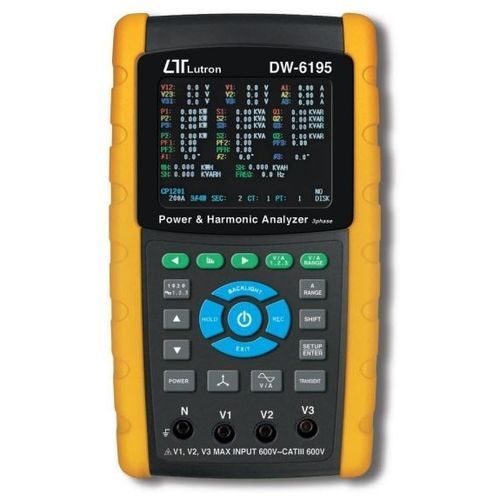

Signal analyzer DW-6195

monitoring3-phase electrical networkspower

* Color LCD display. * Analysis for 3 phase multi-power system, 1P/2W,1P/3W, 3P/3W, 3P/4W. * 3 current probes ( CP-1201 ) are included, if change the current probes, the calibration procedures are not necessary. * Current probe input signal/ranges with selection : Input signal ( ACV ) : 200 mV/300 mV/500 mV/1 V/2 V/3 V. Ranges ( ACA ) : 20 A/200 A/2000 A/30 A/300 A/ 3000 A /6000A. * Meter can cooperate the universal current probes. * Complete set with 4 PCs Test Leads, 4 PCs Alligator clips, 3 PCs Clamp Probe ( CP 1201 ), AC to DC 9V adapter, 4G SD memory card and Carrying bag. * Measurement : V ( phase-to-phase ), V ( phase-to-ground ) A ( phase-to-ground ). KW / KVA / KVAR / PF ( phase ). KW / KVA / KVAR / PF ( system ). KWH / KVAH / KVARH / PFH ( system ). Phase angle. * Harmonics display ( 1-50th order ). * Simultaneous display of Harmonics and Waveform. * Display of Waveform with Peak Values. * Analysis of Total Harmonic Distortion ( THD ). * Graphic Phase diagram with 3-Phase system parameters. * 3 phase Voltage or Current Unbalanced Ratio (VUR, AUR ) and Unbalanced Factor. * Calculated Unbalanced Current through Neutral Line ( An ). * Capture Transient events ( including Dip, Swell and Outage ) with programmable threshold (% ). * Programmable CT ratio ( 1 to 600 ) and PT ratio ( 1 to 1000 ). * ACV input impedance is 10 Mega ohms. * Safety Standard : IEC 1010, CAT III 600V.
