Diaphragm pump MAGDOS LD
watersolenoid-drivenstationary

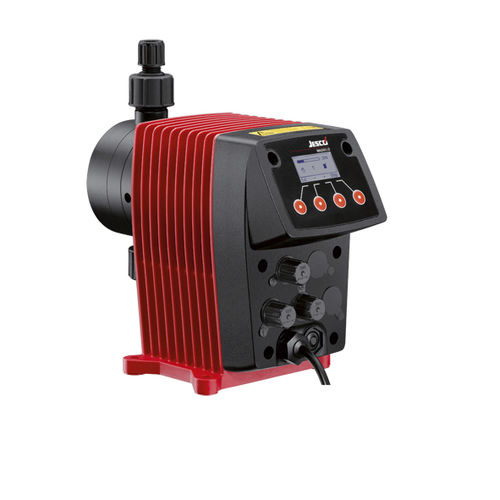

Diaphragm pump - MAGDOS LD  - Lutz-Jesco GmbH - water / solenoid-driven / stationary
Diaphragm pump - MAGDOS LD  - Lutz-Jesco GmbH - water / solenoid-driven / stationary
Add to favorites
Compare this product


Characteristics

Technology
diaphragm
Fluid
water
Operation
solenoid-driven
Mobility
stationary, mobile
Domain
industrial
Applications
metering, process
Material
PP, PVC
Voltage
230 V, 115 V
Protection level
IP65
Other characteristics
compact, floor-mounted, integrated, wall
Flow

Min.: 0.5 l/h
(0.13209 us gal/h)

Max.: 15 l/h
(3.96258 us gal/h)

Pressure

Min.: 3 bar
(43.511 psi)

Max.: 16 bar
(232.06 psi)

Power

Min.: 8 W
(0.01 hp)

Max.: 25 W
(0.03 hp)

Fluid temperature

Min.: 5 °C
(41 °F)

Max.: 80 °C
(176 °F)

Weight

3.2 kg
(7.05 lb)

Description

Simple to use and space-saving MAGDOS LD plays an important role in the reliable and accurate dosing of liquids in process sequences and is available in seven power ranges. Double-ball valves ensure accurate dosing. To adapt the dosing performance, the stroke frequency can be adjusted manually or via an external control contact. The dosing pump is compact and, thanks to the small mounting area, can be integrated into every dosing system in a very space-saving way. It can be mounted in three different positions without further attachments: standing, left- or right-oriented on a wall. Dosing head ventilation Suitable for wall and floor mounting Material finishes PVC, PP, PVDF Stroke frequency can be precisely adjusted via the keyboard Graphic display Pulse input (increase and reduction) Level input with early warning and main alarm Release input for external start/stop Calculation wizard for pulse operation available online CSA and UL certified
