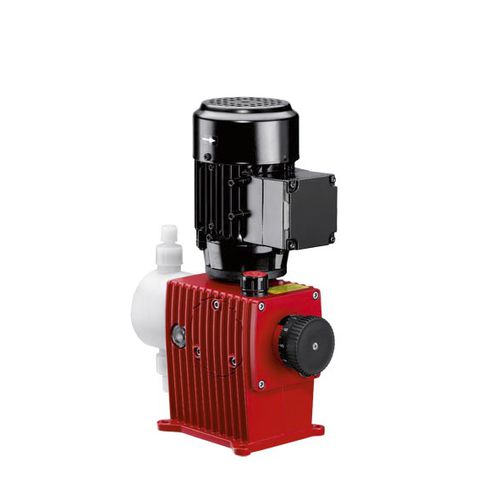

Double-diaphragm pump MEMDOS LB
acidelectricstationary

Double-diaphragm pump - MEMDOS LB  - Lutz-Jesco GmbH - acid / electric / stationary
Double-diaphragm pump - MEMDOS LB  - Lutz-Jesco GmbH - acid / electric / stationary
Double-diaphragm pump - MEMDOS LB  - Lutz-Jesco GmbH - acid / electric / stationary - image - 2
Double-diaphragm pump - MEMDOS LB  - Lutz-Jesco GmbH - acid / electric / stationary - image - 3
Double-diaphragm pump - MEMDOS LB  - Lutz-Jesco GmbH - acid / electric / stationary - image - 4
Add to favorites
Compare this product


Characteristics

Technology
double-diaphragm
Fluid
acid
Operation
electric
Mobility
stationary, mobile
Domain
industrial
Applications
metering
Material
PP, PVC, PVDF
Voltage
400 V, 230 V
Protection level
ATEX
Flow

Max.: 1,020 l/h
(269.45549 us gal/h)

Min.: 4 l/h
(1.05669 us gal/h)

Pressure

Max.: 16 bar
(232.06 psi)

Min.: 5 bar
(72.519 psi)

Fluid temperature

Max.: 80 °C
(176 °F)

Min.: 5 °C
(41 °F)

Weight

Max.: 23.5 kg
(51.81 lb)

Min.: 8 kg
(17.64 lb)

Description

Riding on the crest of the waves The MEMDOS LB is used when the integration of the pump into controls or control circuits is required. Thanks to the sturdy tappet drive with manual or automatic capacity adjustment, the conveyed media such as acids, lyes, coagulants and flocculants are dosed reliably and precisely. To adapt the dosing capacity, either the stroke length can be adjusted mechanically or the speed of the three-phase motor can be regulated by means of a separate frequency converter. On request, the MEMDOS LB pumps can also be supplied with a double-diaphragm system. Material finishes PVC, PP, PVDF and stainless steel Infinitely variable stroke length from 0 – 100 % A variety of three-phase and alternating current motors ATEX versions are available for Zones 1 and 2 Also suitable for frequency converter operation Double-diaphragm system (optional) Automatic stroke length adjustment (optional)
