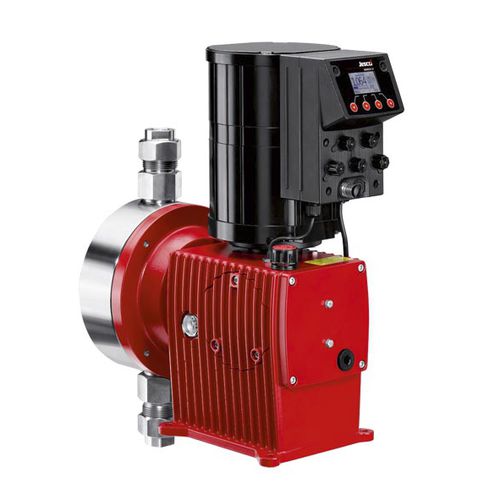

Double-diaphragm pump MEMDOS LP

acidelectricstationary

The MEMDOS LP is used when the integration of the pump into controls or control circuits is required. For integration into demanding automation networks, a version with an Ethernet-based MODBUS interface is available. Thanks to the sturdy tappet drive with manual or automatic capacity adjustment, the conveyed media such as acids, lyes, coagulants and flocculants are dosed reliably and precisely. On request, the MEMDOS LP pumps can also be supplied with a double-diaphragm system. Material finishes PVC, PP, PVDF and stainless steel Stroke frequency can be precisely adjusted via the keyboard Precise pump adjustment via the keyboard Graphic display with multi-language menu Analogue input 0/4 – 20 mA Pulse input (increase and reduction) Level input with early warning and main alarm Release input for external start/stop Supply amount displayed in various units Maximum delivery rate can be limited Stroke feedback output Batch dosing with interval and timer functions Dosing control input Alarm relay output Analogue output 0/4 – 20 mA Diaphragm rupture detection and reporting (optional) Double-diaphragm system (optional) Ethernet interface (optional)
