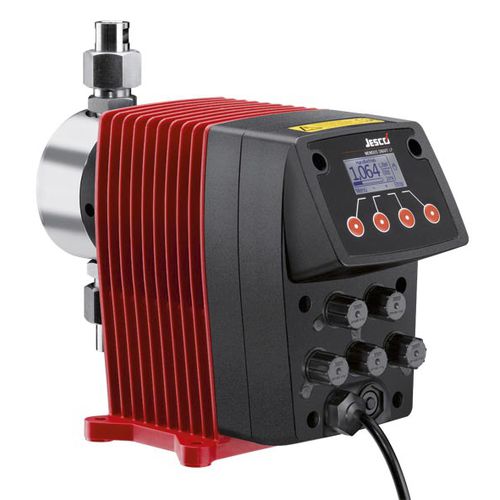

Diaphragm pump MEMDOS SMART LP

waterstepper motor-drivenstationary

Precision that inspires The compact stepper-motor pump, coupled with its intelligent drive concept, combines the big advantages of a solenoid-driven diaphragm dosing pump with the precision of a motor-driven diaphragm dosing pump. The MEMDOS SMART LP series is available in five capacity ranges. The MEMDOS SMART LP's drive is fully adjustable. For integration into demanding automation networks, a version with an Ethernet-based MODBUS interface is available. Microprocessor controlled drive Integrated dosing head venting facility (only MEMDOS SMART LP 2, LP 5 and LP 10 with dosing head made of plastic) Suitable for wall and floor mounting Material finishes PVC, PP, PVDF and stainless steel Stroke frequency can be precisely adjusted via the keyboard Graphic display with multi-language menu Analogue input and pulse input (increase and reduction) Level input with early warning and main alarm Release input for external start/stop Supply amount displayed in various units Maximum delivery rate can be limited Diaphragm replacement programme 2 Slow Motion modes for dosing viscous media Stroke feedback output Alarm relay output Batch dosing with interval and timer functions Dosing control input Diaphragm rupture input for leak monitoring Ethernet interface (optional) CSA and UL certified
