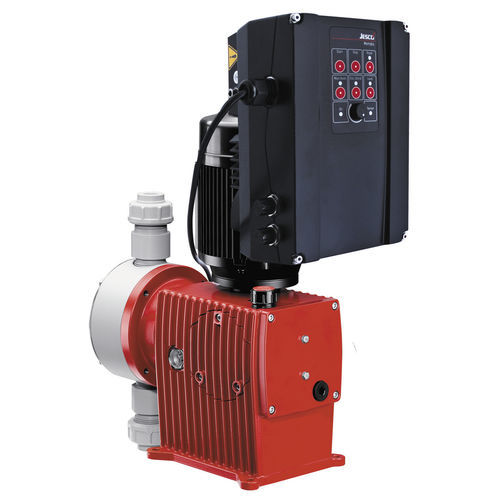

Double-diaphragm pump MEMDOS LAacidelectricstationary
Add to favorites
Compare this product
Characteristics
- Technology
- double-diaphragm
- Fluid
- acid
- Operation
- electric
- Mobility
- stationary, mobile
- Domain
- industrial
- Applications
- dosing, for control
- Material
- PP, PVC, PVDF
- Voltage
- 230 V, 115 V
- Other characteristics
- suction, large
- Flow
Min.: 4 l/h
(1.05669 us gal/h)Max.: 1,020 l/h
(269.45549 us gal/h)- Pressure
Min.: 0 bar
(0 psi)Max.: 16 bar
(232.06 psi)- Fluid temperature
Min.: 5 °C
(41 °F)Max.: 80 °C
(176 °F)- Weight
Min.: 15.9 kg
(35.05 lb)Max.: 61.5 kg
(135.58 lb)
Description
iding on the crest of the waves
The MEMDOS LA is equipped with a diverse range of inputs and outputs and can thus be deployed for complex dosing tasks. It can be controlled via a 0/4 – 20 mA current input and an external release input. At the same time, it indicates its current operating state via a fault output (alarm relay) and an optocoupler output (stroke feedback). The pump is fitted with a 0 – 20 mA analogue output.
The MEMDOS LA is compatible with all conventional control systems.
The pump is also fitted with a level input, can evaluate suction lines directly using a low level alarm and its large functional scope means that it can be deployed in a number of areas.
Material finishes PVC, PP, PVDF and stainless steel
Stroke frequency manually settable via a potentiometer
Release input for external start/stop
Analogue input 0/4 – 20 mA
Level input with a switching point
Analogue output 0/4 – 20 mA
Alarm relay output
Stroke feedback output
Double-diaphragm system (optional)
CSA and UL certified
