Resin pump B70H

oilelectricsemi-submersible

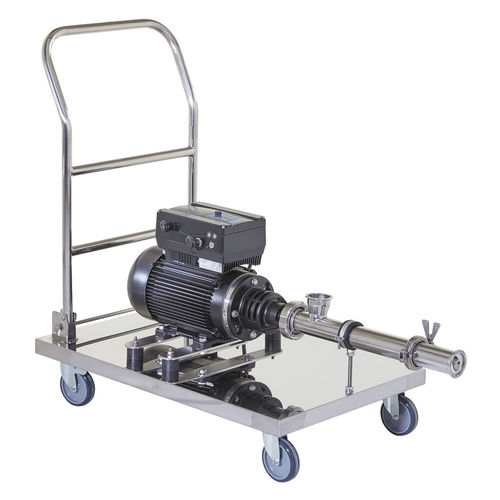

The B70H is a modification of our B70V and is designed for horizontal use on a transport trolley. It can be used in situations where the B70V comes up against spatial or handling limits and thus rounds off our Eccentric screw pumps with a mobile variant. The pump is suitable for pumping aqueous to highly viscous Newtonian and non- Newtonian media as well as media containing solids and shear-sensitive media. It is also used in explosion-proof zones for aggressive and highly flammable liquids with high delivery pressure. • also available in explosion-proof design on request • Horizontal version • with stainless steel transport trolley Features & Advantages • Conveying possible at low room height • No physical strain due to heavy lifting • Mobility is given by the transport trolley • Simple size change possible • Easy handling of pumps with large weights * The maximum flow rate is a value determined by means of a test bench and measured with water at a liquid temperature of approx. 20 °C . The measurement is taken at the pressure joint of the pump, without hose, nozzle or flow meter.‌The achievable flow rate in use is lower and depends on the individual application, the liquid properties and the configuration of the pump.The max. delivery head also depends on the pump design, motor and fluid.‌The viscosity values are determined with oil.
