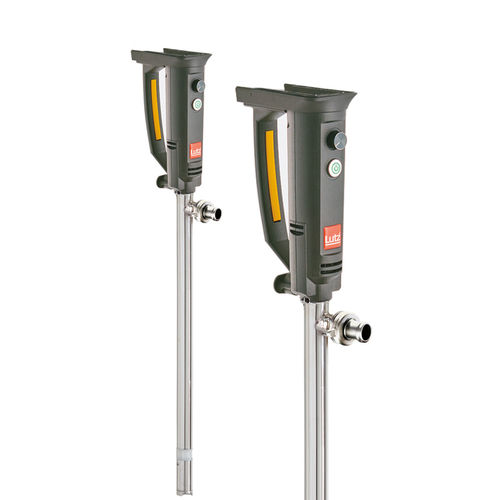

Drum pump B2 Battery Niro
impellerfor chemicalsfor lubricants

Drum pump - B2 Battery Niro - Lutz Pumpen GmbH | Lutz-Jesco GmbH - impeller / for chemicals / for lubricants
Drum pump - B2 Battery Niro - Lutz Pumpen GmbH | Lutz-Jesco GmbH - impeller / for chemicals / for lubricants
Drum pump - B2 Battery Niro - Lutz Pumpen GmbH | Lutz-Jesco GmbH - impeller / for chemicals / for lubricants - image - 2
Drum pump - B2 Battery Niro - Lutz Pumpen GmbH | Lutz-Jesco GmbH - impeller / for chemicals / for lubricants - image - 3
Add to favorites
Compare this product


Characteristics

Technology
impeller
Fluid
for chemicals, for lubricants
Operation
manually-controlled
Priming
semi-submersible
Mobility
stationary, mobile
Domain
industrial, laboratory
Applications
transfer, drum, drain
Material
stainless steel
Fluid specification
for low-viscosity fluids
Other characteristics
battery-powered
Flow

Max.: 80 l/min
(21.13376 us gal/min)

Min.: 0 l/min
(0 us gal/min)

Head

Max.: 8 m
(26'02" )

Min.: 0 m
(0'00" )

Power

260 W
(0.35 hp)

Fluid temperature

90 °C
(194 °F)

Input diameter

28 mm
(1.102 in)

Description

The B2 Battery Drum pump is suitable for thin-bodied, aqueous to slightly viscous media. The set is suitable for removing small containers such as Canister or hobbocks. The pump is flexible at all times and thus saves important resources. • Replaceable, powerful battery with Li-Ion • Battery life 35 min at maximum speed • 1 battery charge emptied approx. 12 x 200 litre container Features & Advantages • BLDC Motor with high efficiency of up to 70 • continuously adjustable • long battery life • automatic shutdown on overload • sophisticated quick lock * The maximum flow rate is a value determined by means of a test bench and measured with water at a liquid temperature of approx. 20 °C . The measurement is taken at the pressure joint of the pump, without hose, nozzle or flow meter.‌The achievable flow rate in use is lower and depends on the individual application, the liquid properties and the configuration of the pump.The max. delivery head also depends on the pump design, motor and fluid.‌The viscosity values are determined with oil.
