Chemical pump 5220-050hydraulically-operatedself-primingstationary
Add to favorites
Compare this product
Characteristics
- Fluid
- for chemicals
- Operation
- hydraulically-operated
- Priming
- self-priming
- Mobility
- stationary, mobile
- Domain
- industrial, for the chemical industry, for the petrochemical industry, for the metallurgical industry, for the paper industry
- Applications
- transfer, drum, drain, IBC
- Material
- polypropylene
- Fluid specification
- for aggressive media, for low-viscosity fluids, for solids-laden fluids
- Other characteristics
- oil-free
- Flow
76 l/min
(20.07708 us gal/min)- Pressure
8 bar
(116.03 psi)- Fluid temperature
90 °C
(194 °F)
Description

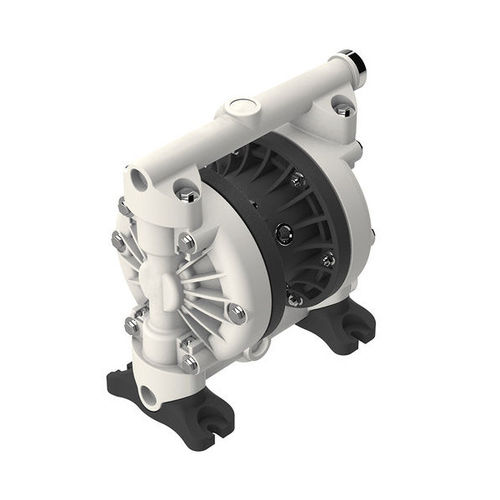

Double diaphragm pump plastic 1/2" - 5220-050
Description:
The double diaphragm pump is suitable for industrial applications as well as for emptying drums, IBCs and tanks.
* typical applications: 200 l drums, paint circulation and feeding, feeding of chemicals, solvents, acids and liquid soap
* integrated muffler up to model size AODD 1"
* highly resistant TFM (PTFE) diaphragms (modified PTFE)
* Versions available in PP or PVDF, depending on resistance
Features & Benefits
* high hydraulic performance
* maintenance-optimised design and simple installation
* self-priming (even when dry)
* reinforced elastomers and thermoplastic diaphragms
* absolutely oil-free
* non-stalling operation
